FORMULATE FUNNEL 02 TENSION FABRIC STRUCTURE
$9,825.00

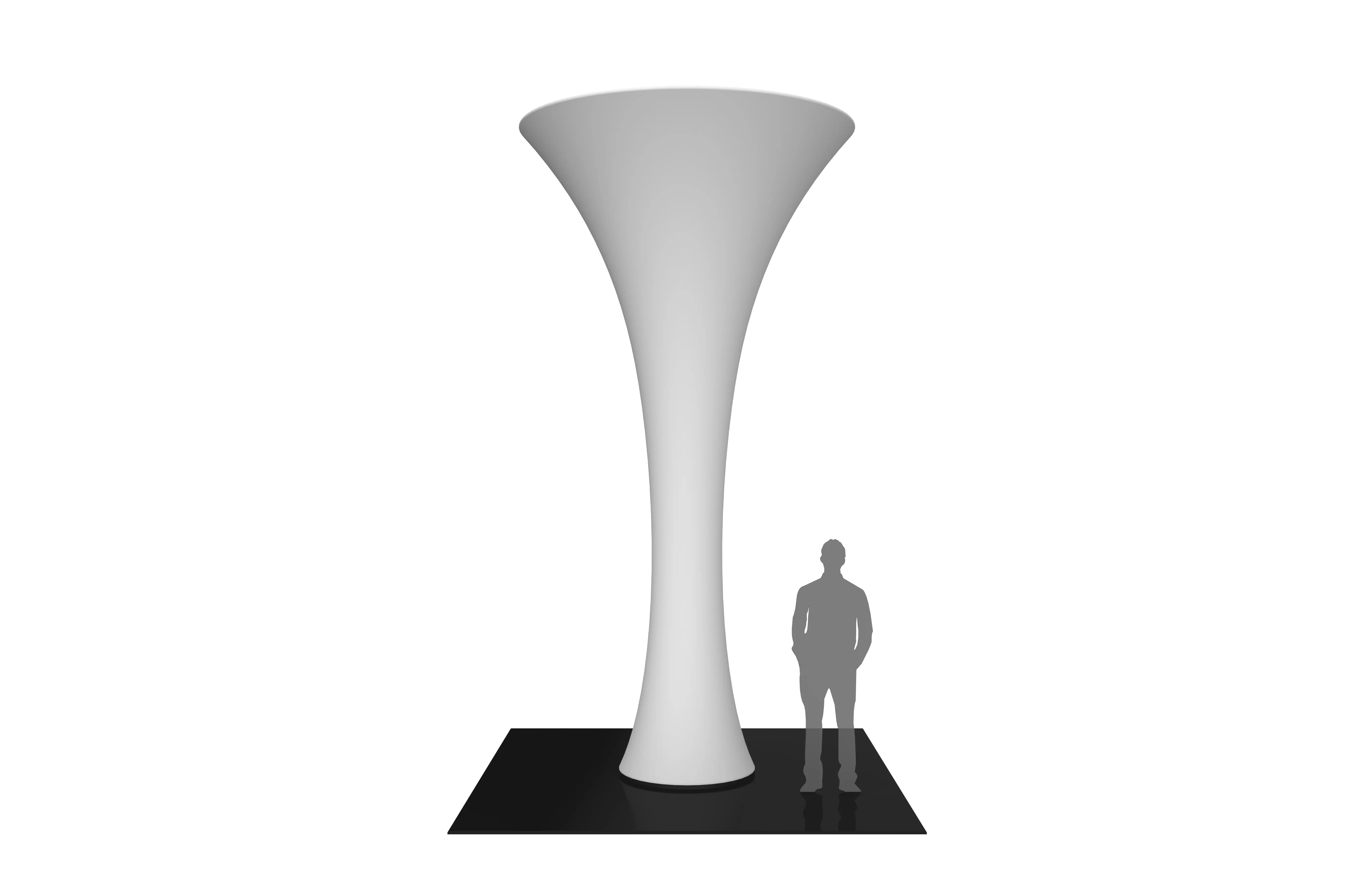

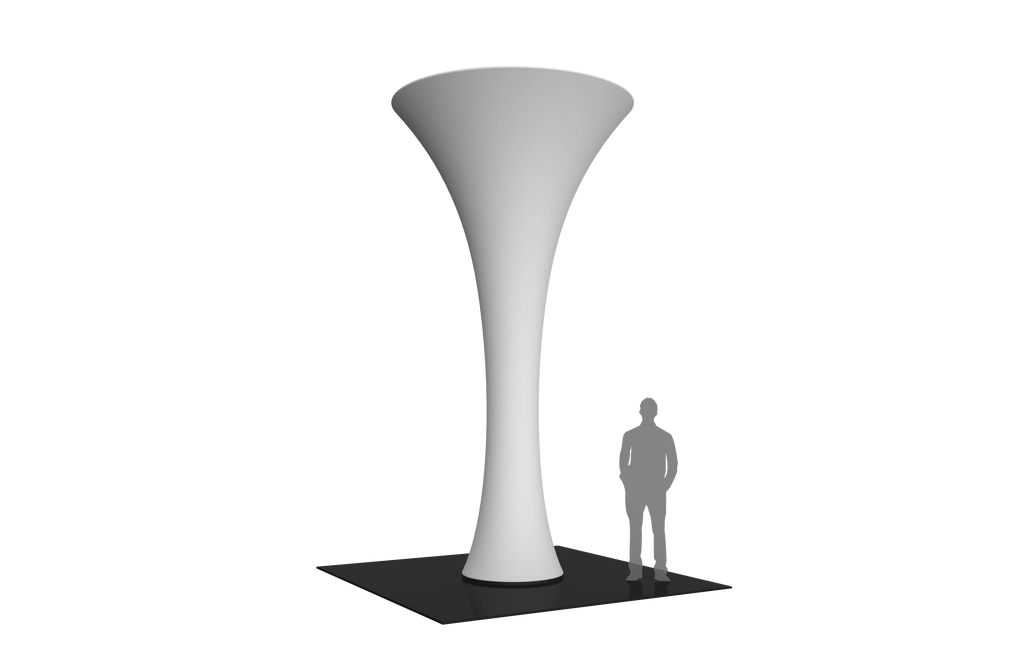

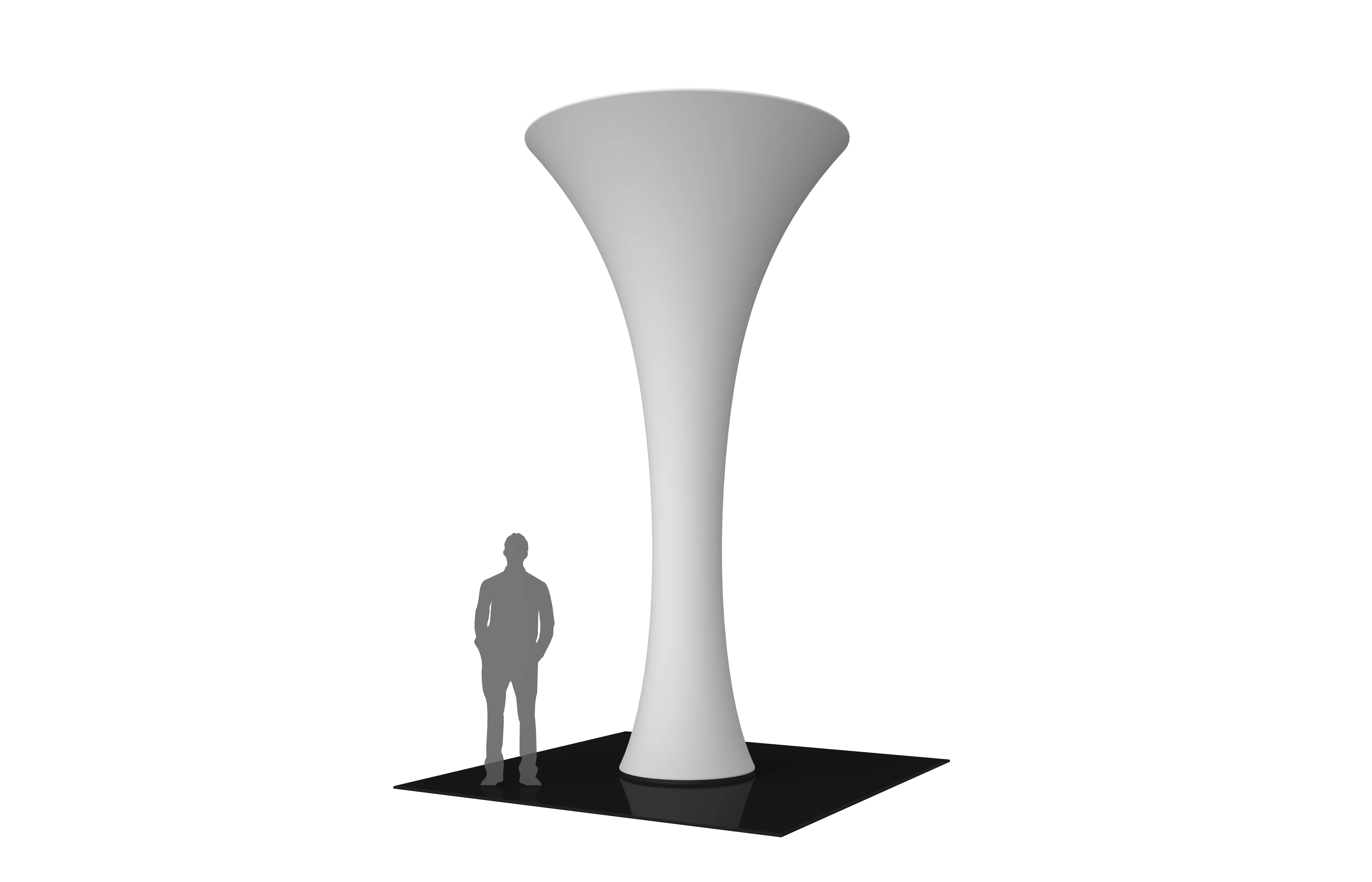

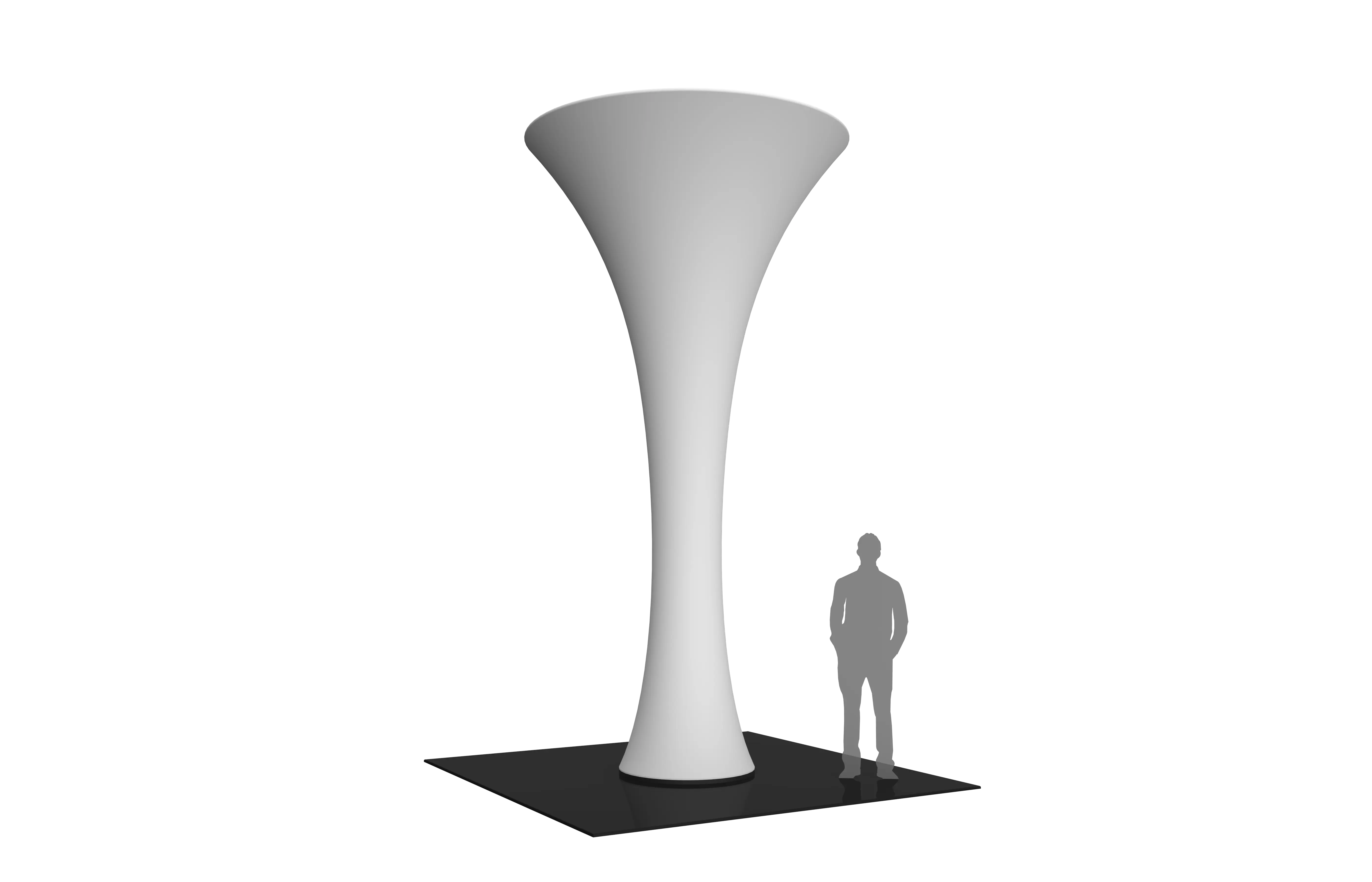

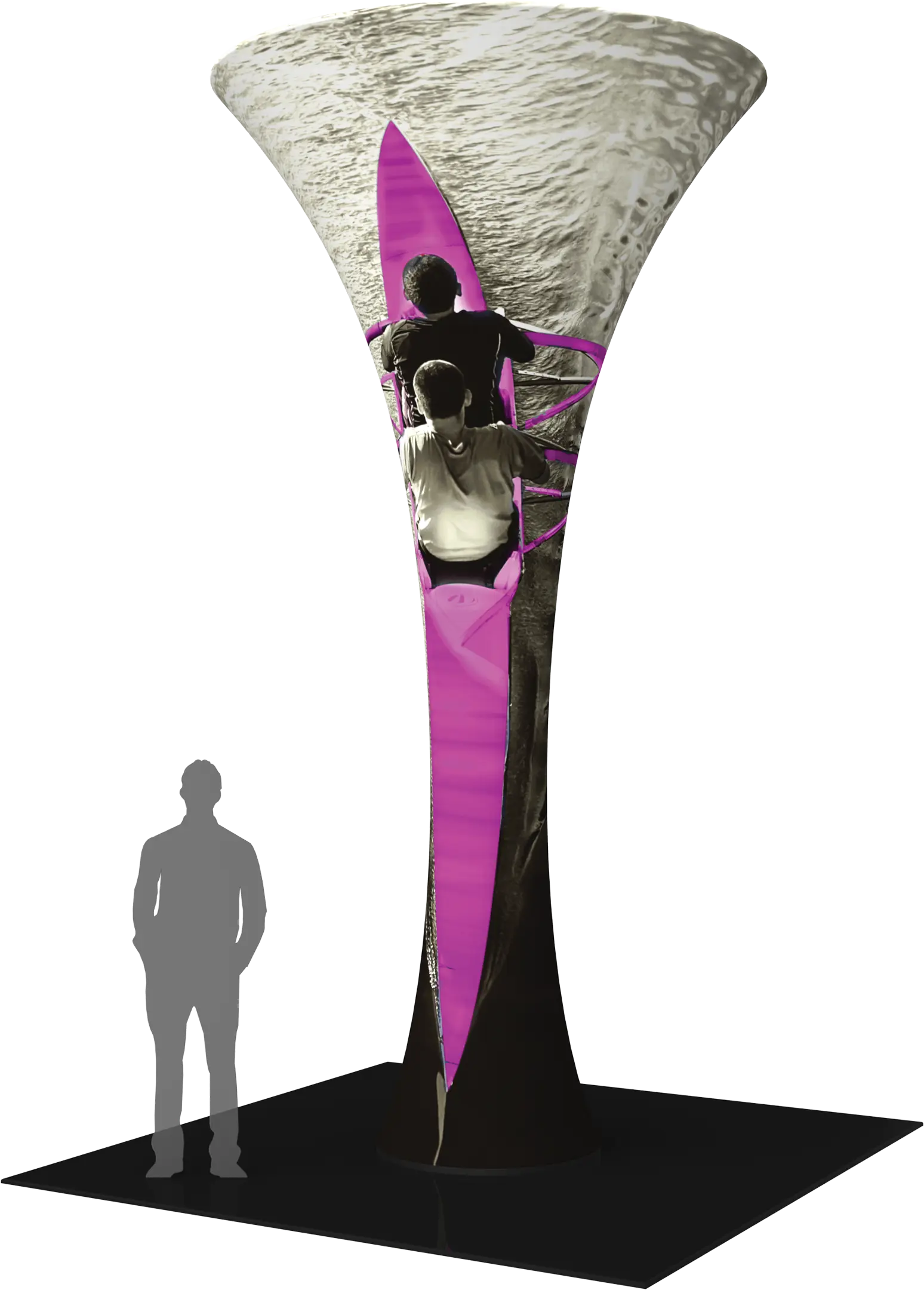

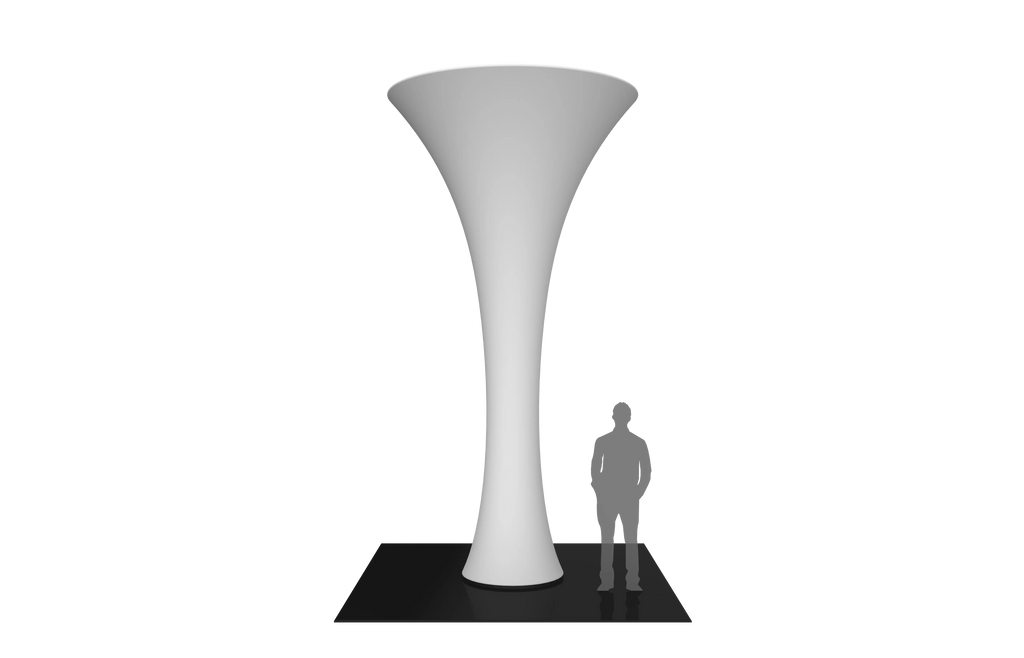

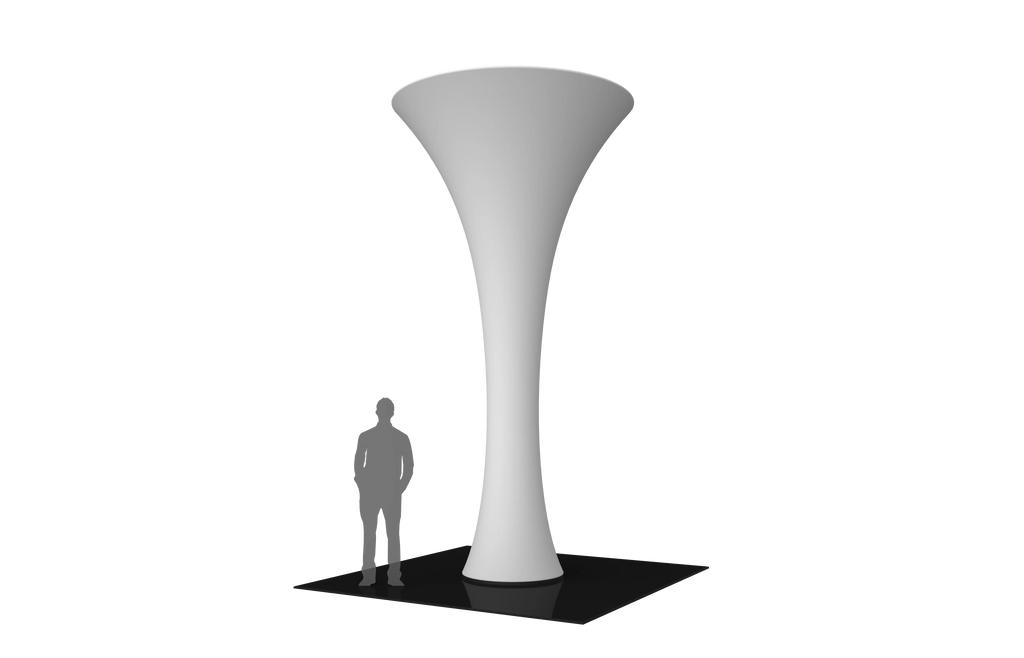

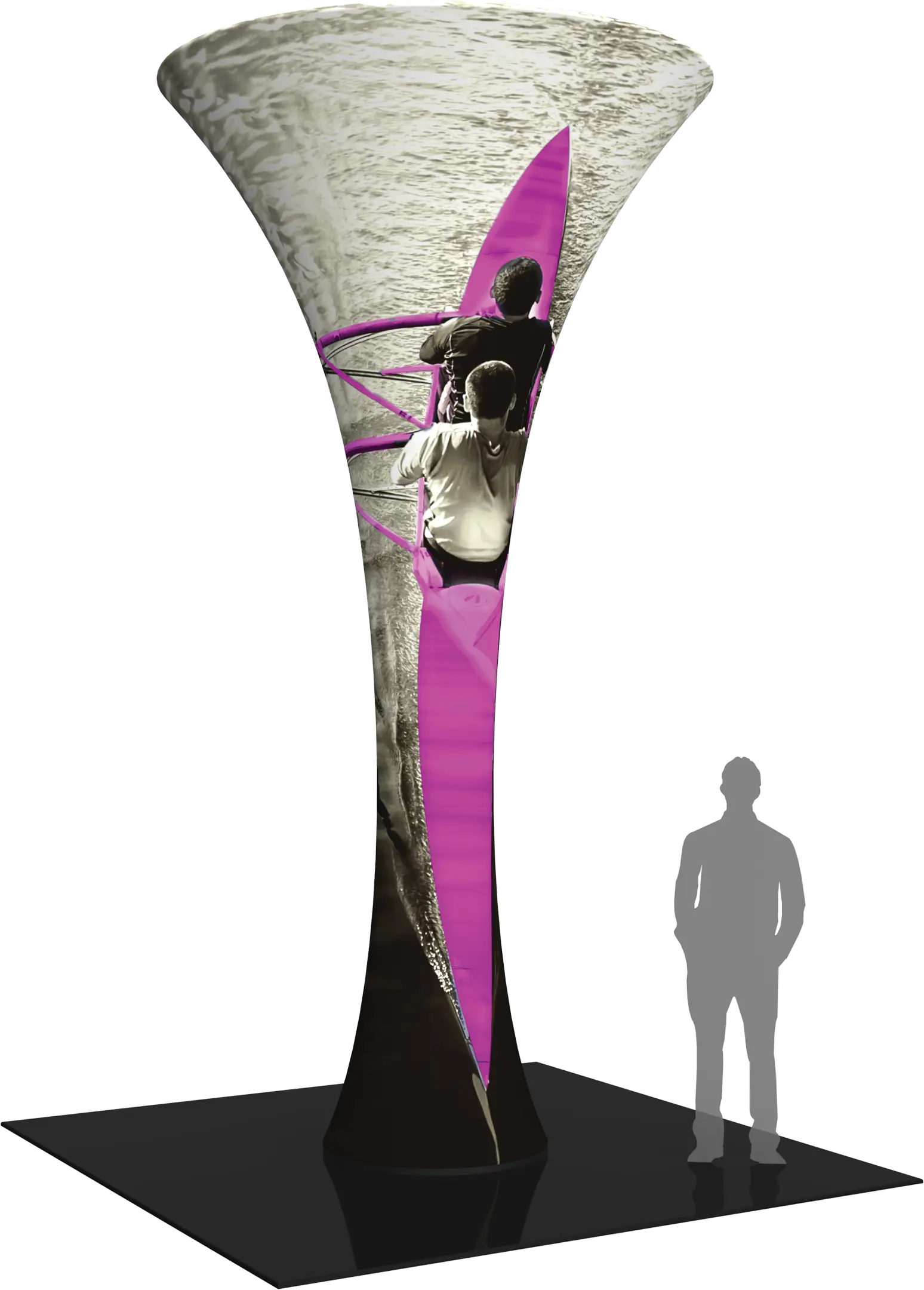

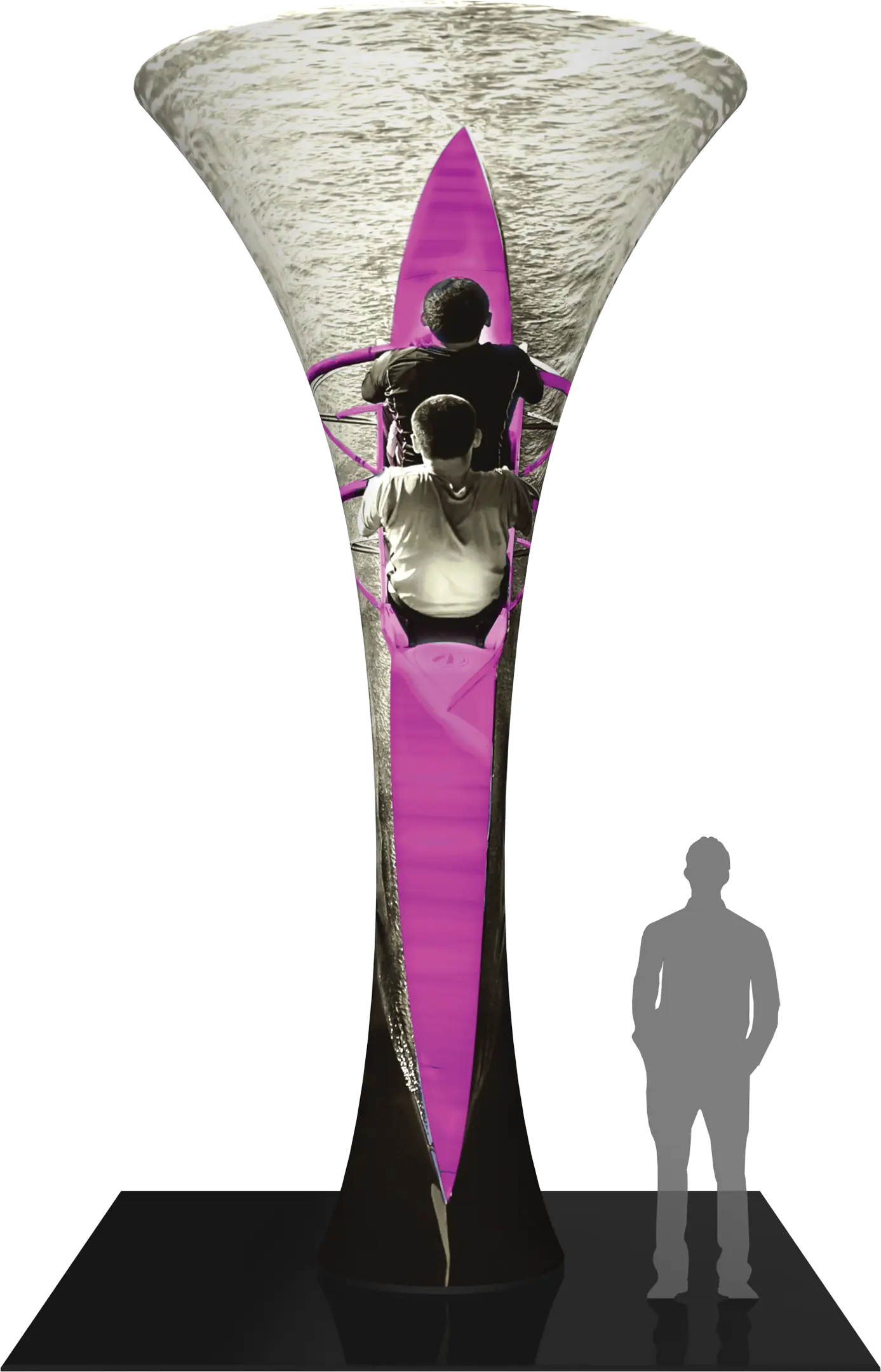

The 16ft Formulate® Fabric Funnel 02 can transform any environment through form, fabric and lighting. Formulate Funnel 02 measures 16ft tall, and features a heavy-duty wooden base and silver powder coated truss interior to create a dynamic, towering structure that commands attention. Fabric graphics feature a zipper at the top and a silicone edge at the bottom for easy assembly. Accent LED light kits are not included, but can be purchased a la carte to add a glow within the funnel. Funnel 02 packs down into two wheeled OCH2 cases for easy storage and transport.
- State-of-the-art 30mm curved aluminum tube frame with expanding spigots
- Easy to store and ship
- Quick to set up
- Kit includes: one frame, one dye-sublimated zipper pillowcase graphic, and two wheeled molded OCH2 storage cases (base packs separately)
- 42" diameter at base
| Graphic Width | 95.21" |
|---|---|
| Graphic Height | 200" |
| Assembled Dimensions | 98.5"W x 188.41"H x 98.5"D |
| Hardware Only Weight | 139.5 lbs |
| Graphics Only Weight | 20 lbs |
| Approximate Total Display Weight | 159.5 lbs |
| Shipping Dimensions | Ships in:2 x OCH2 (52"L x 29"H x 15"D)+ 1 SKID |
| Approximate Shipping Weight | 220 lbs |
Spec Sheets
IS_FUN-02.PDF
Graphic Templates
GT_FMLT-FUN-02.PDF
CAD Files
CAD_FUN-02.ZIP
