FORMULATE FUNNEL 03 TENSION FABRIC STRUCTURE Orbus Formulate Fabric Displays

FORMULATE FUNNEL 03 TENSION FABRIC STRUCTURE

$8,677.35

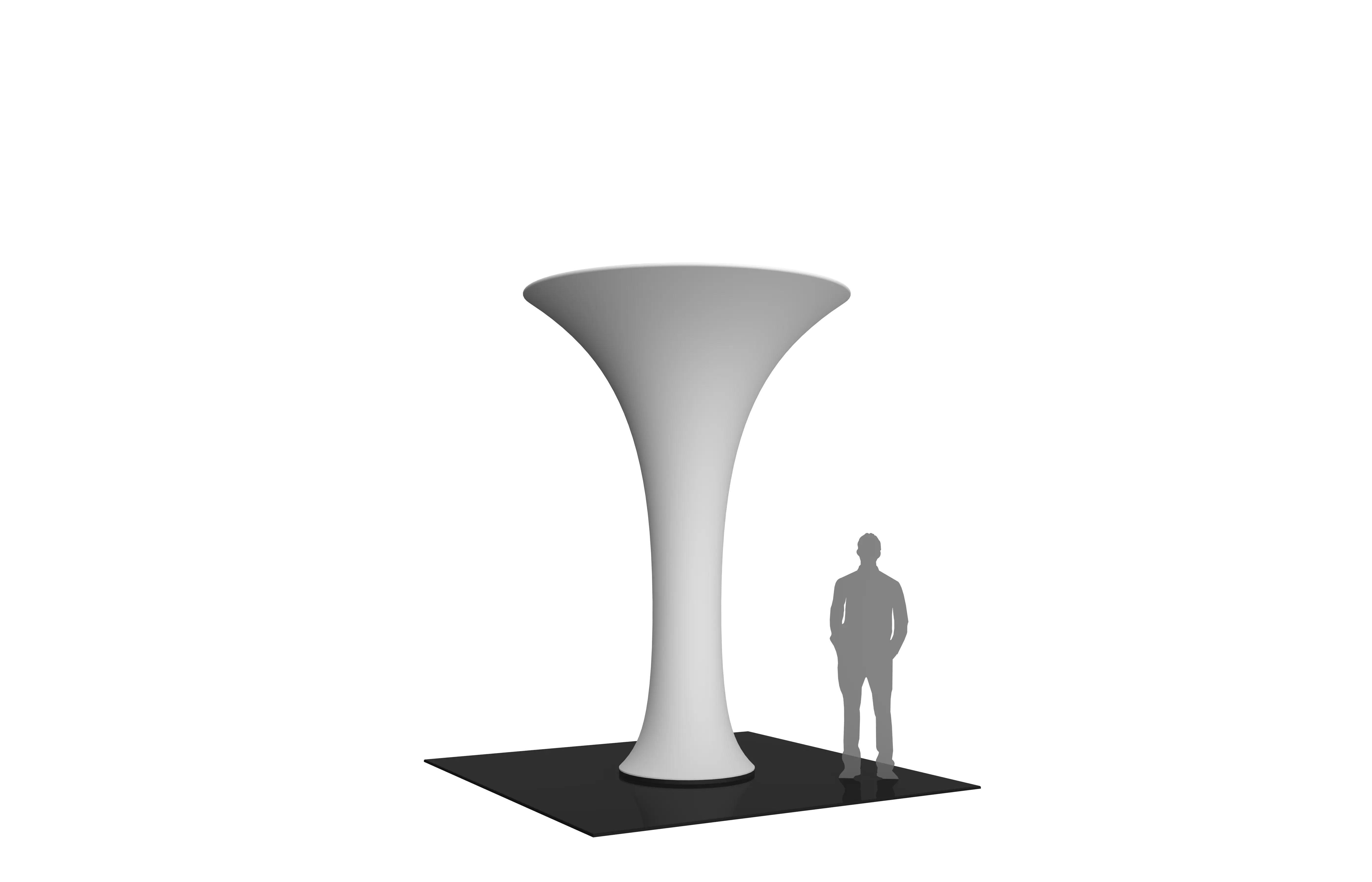

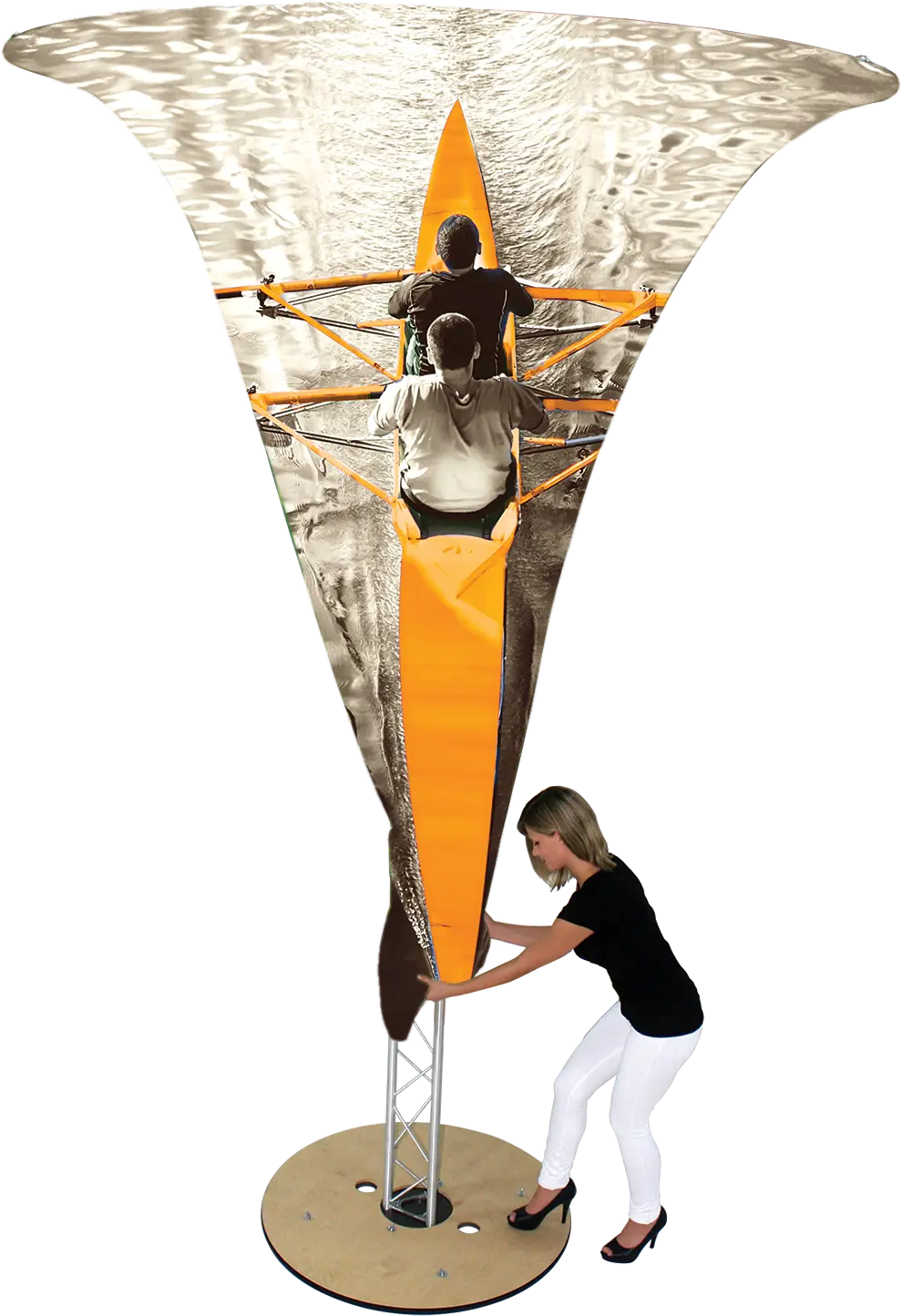

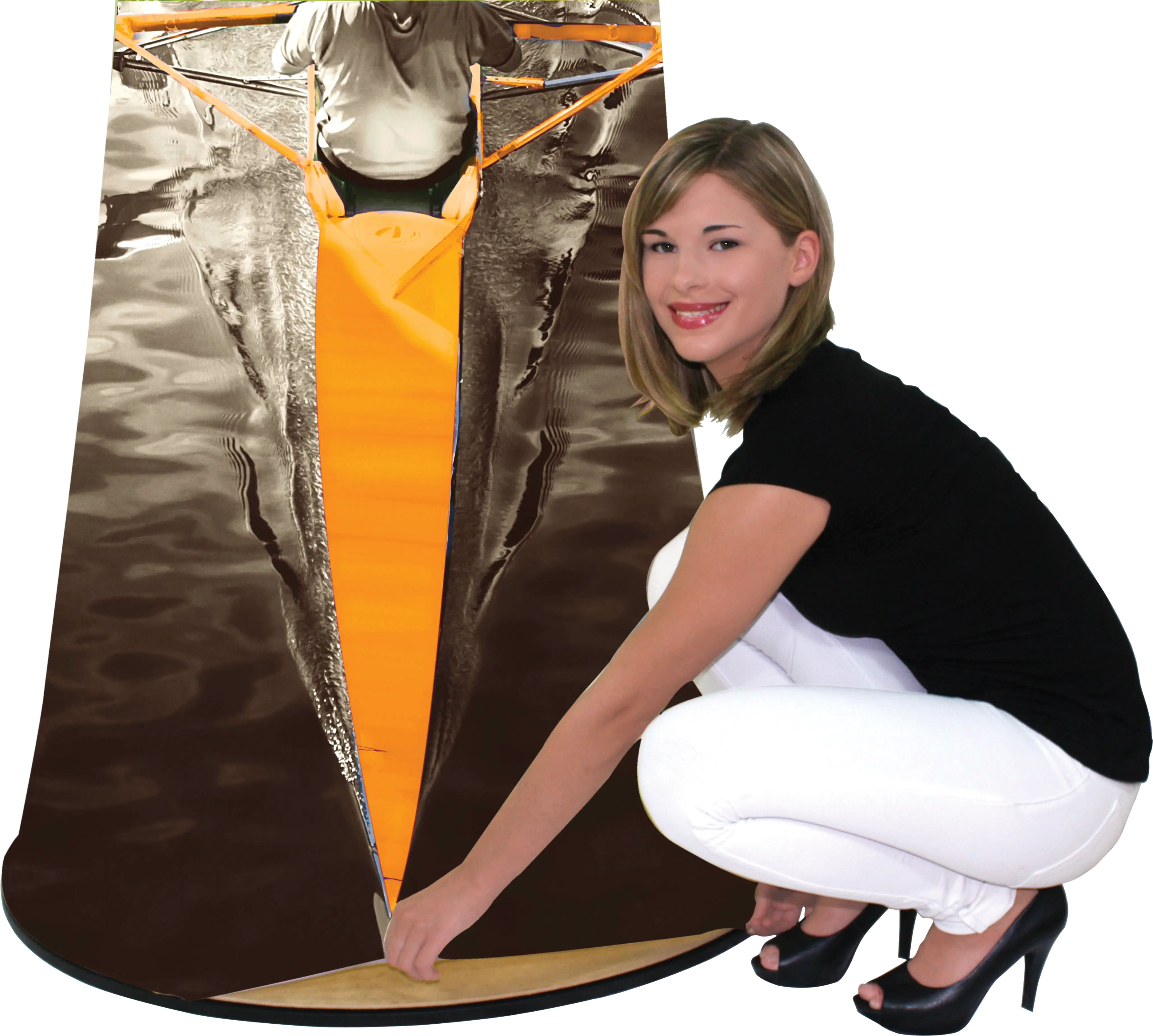

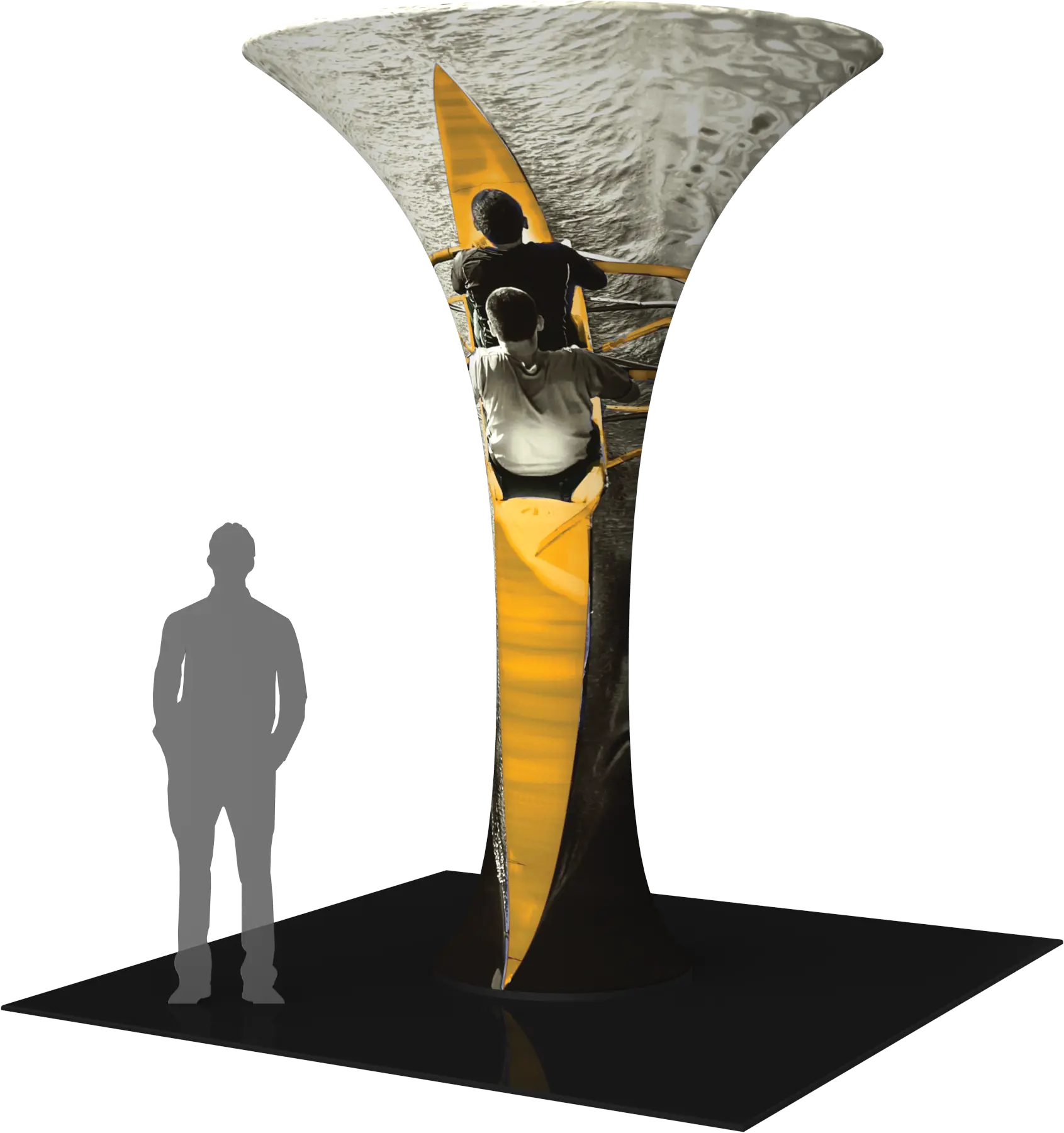

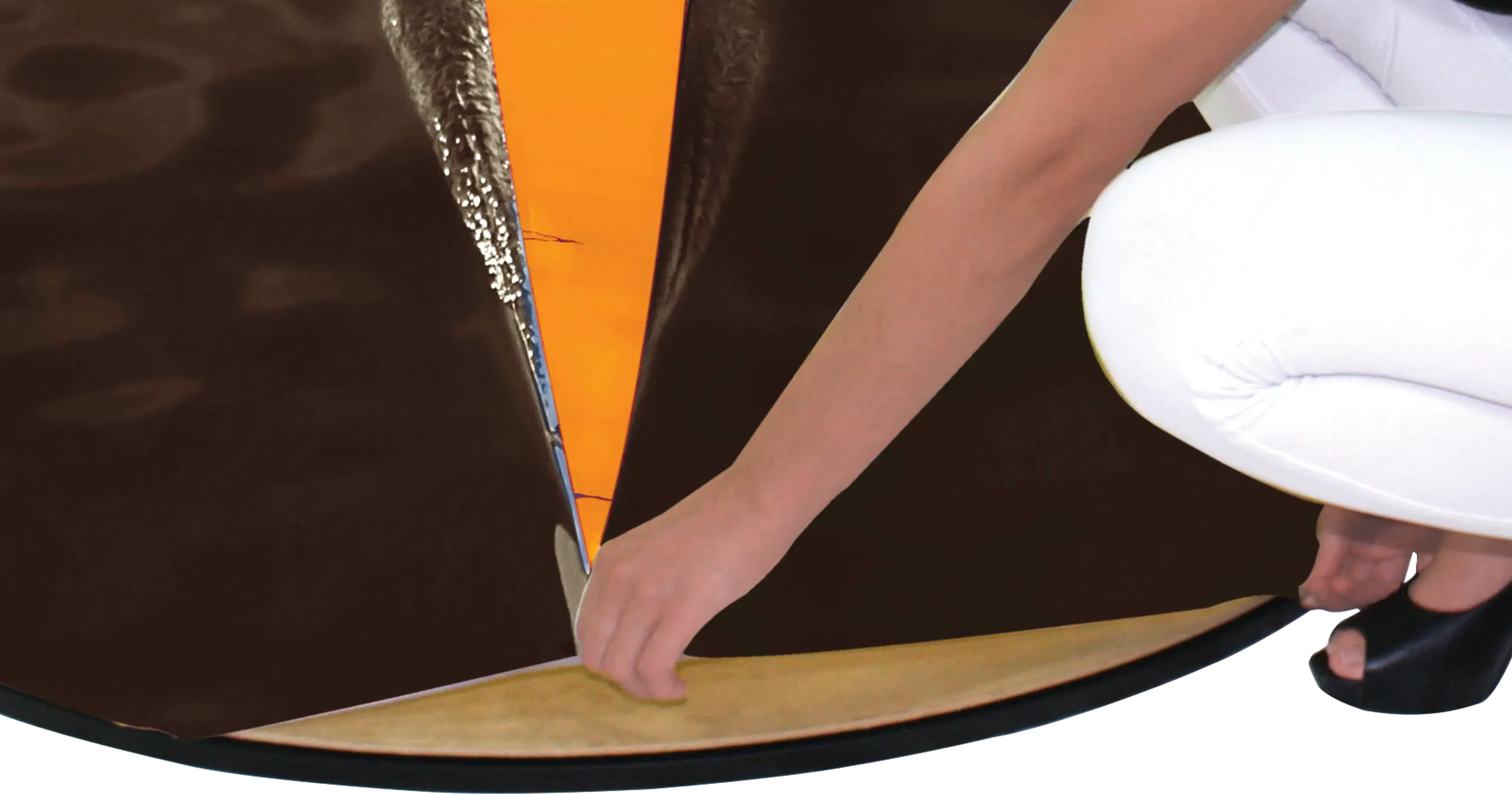

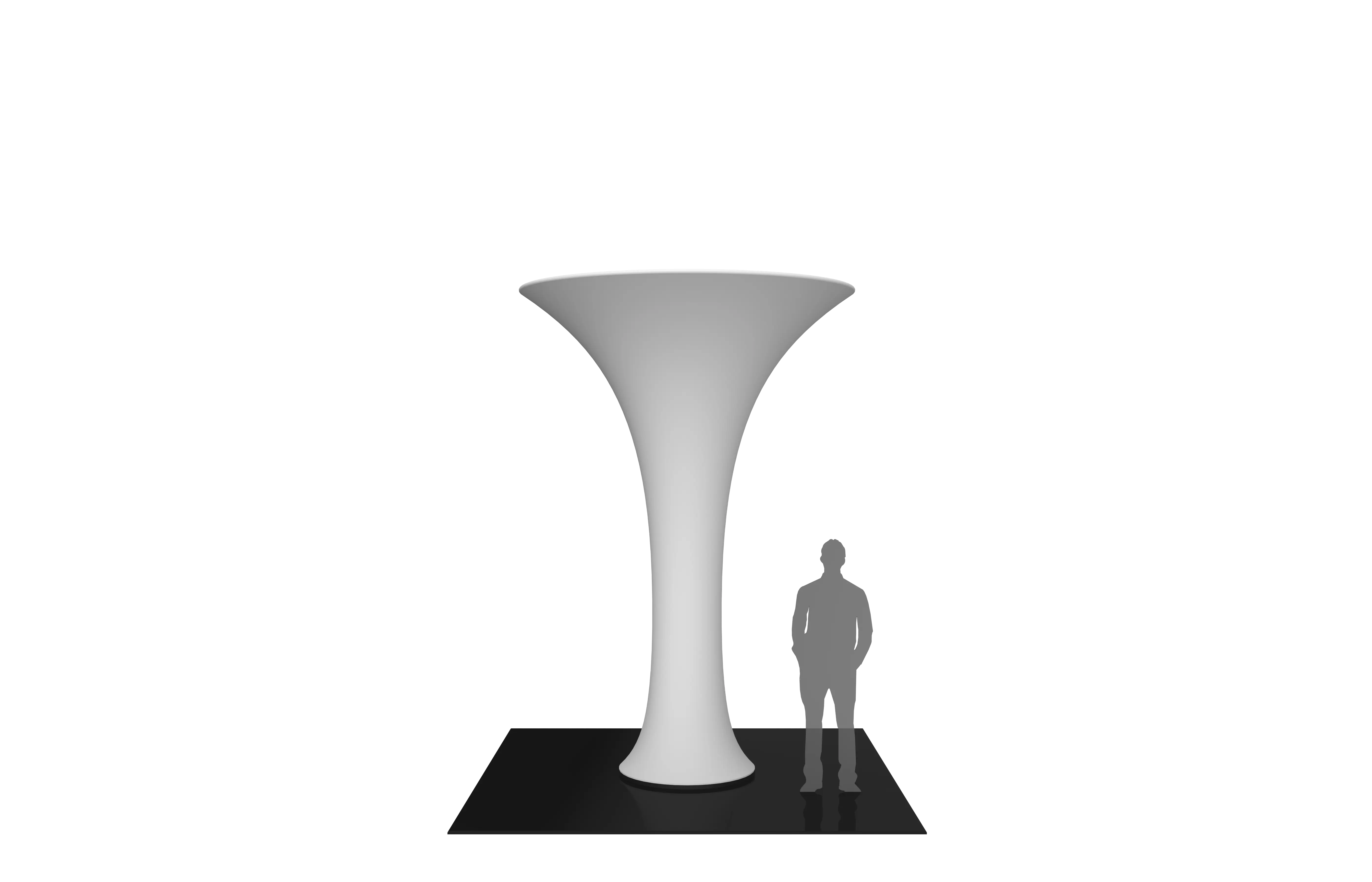

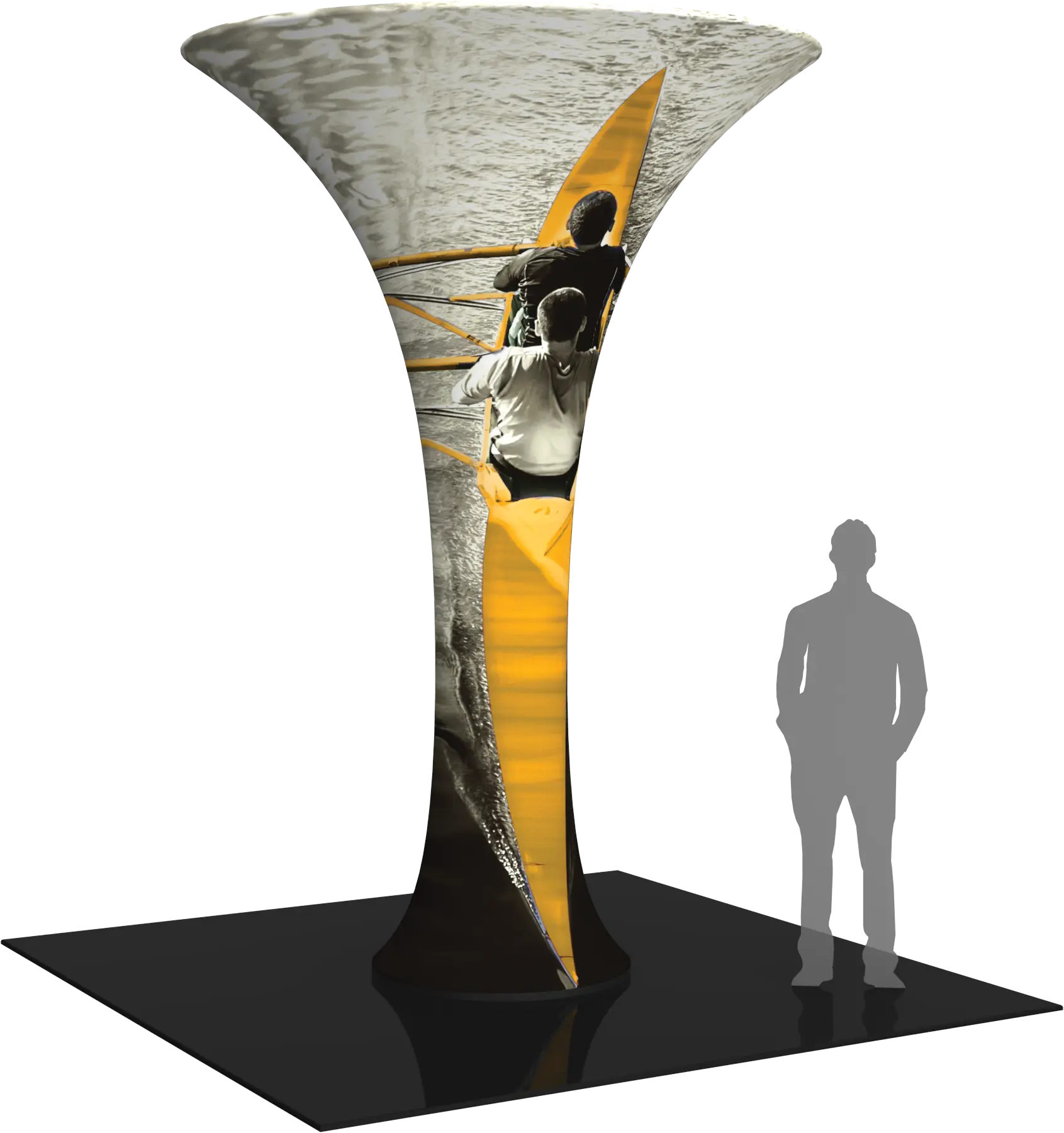

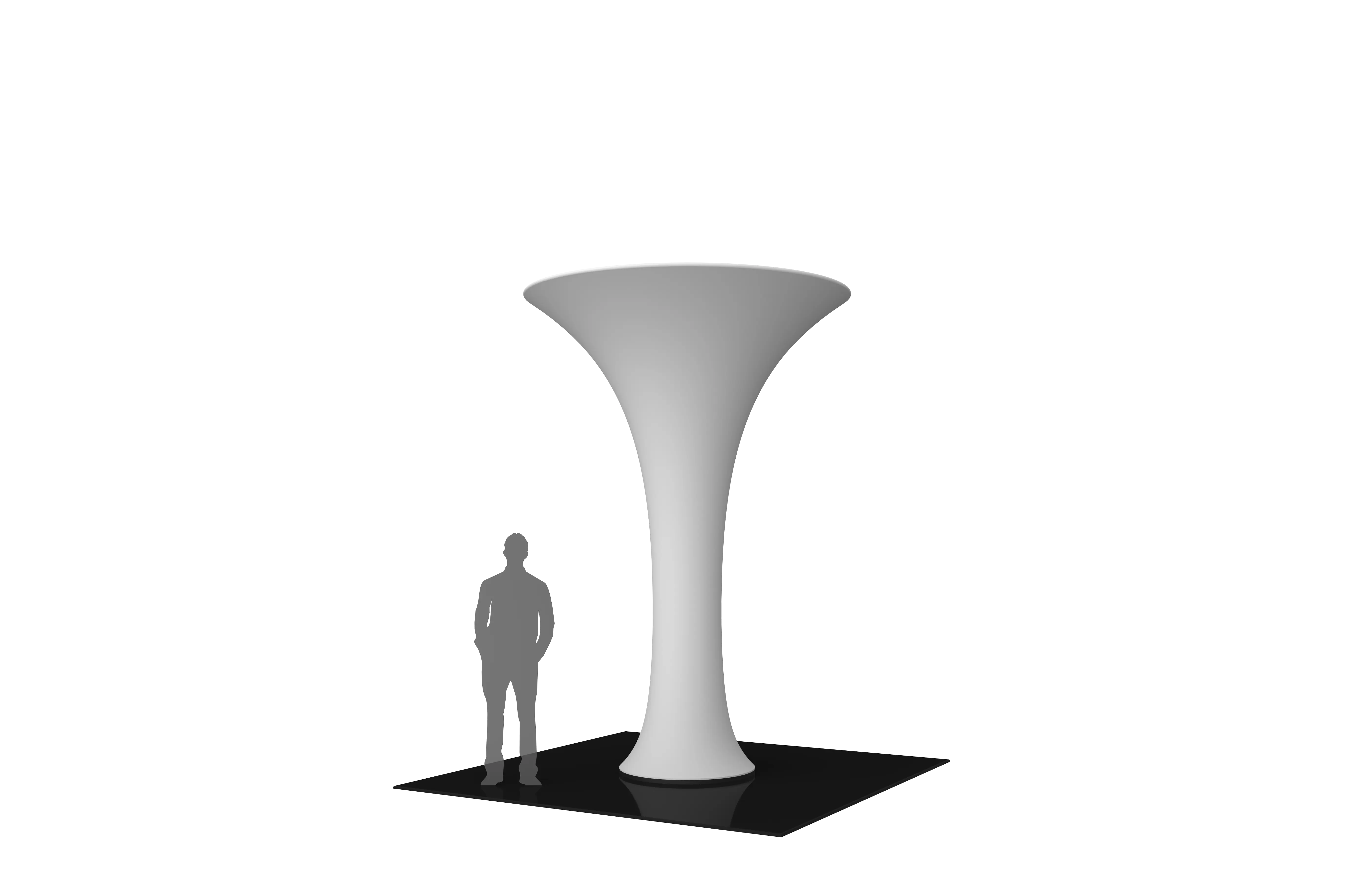

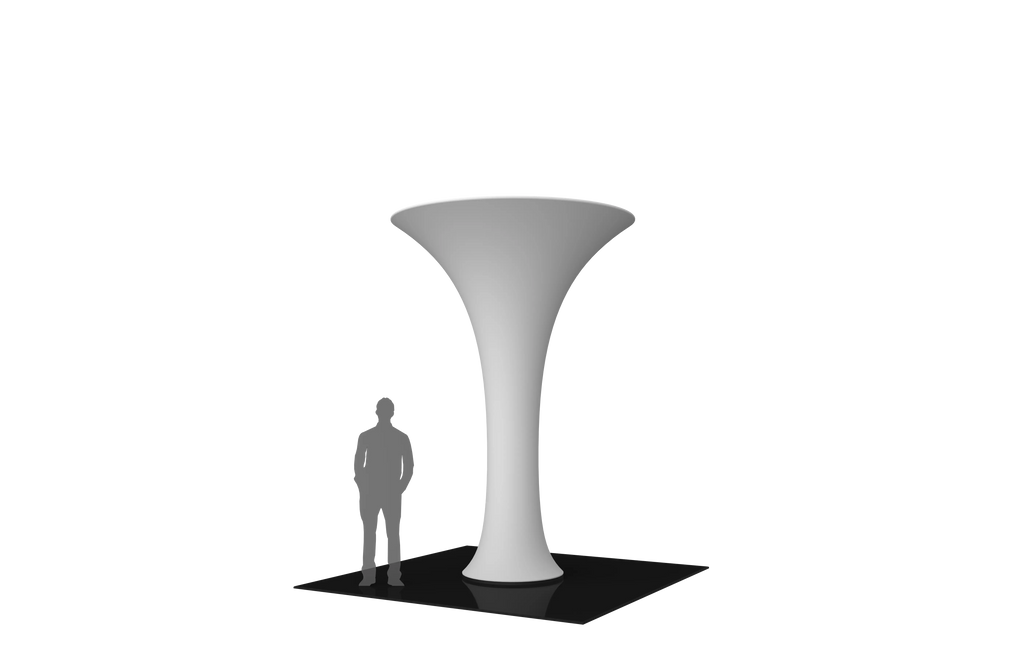

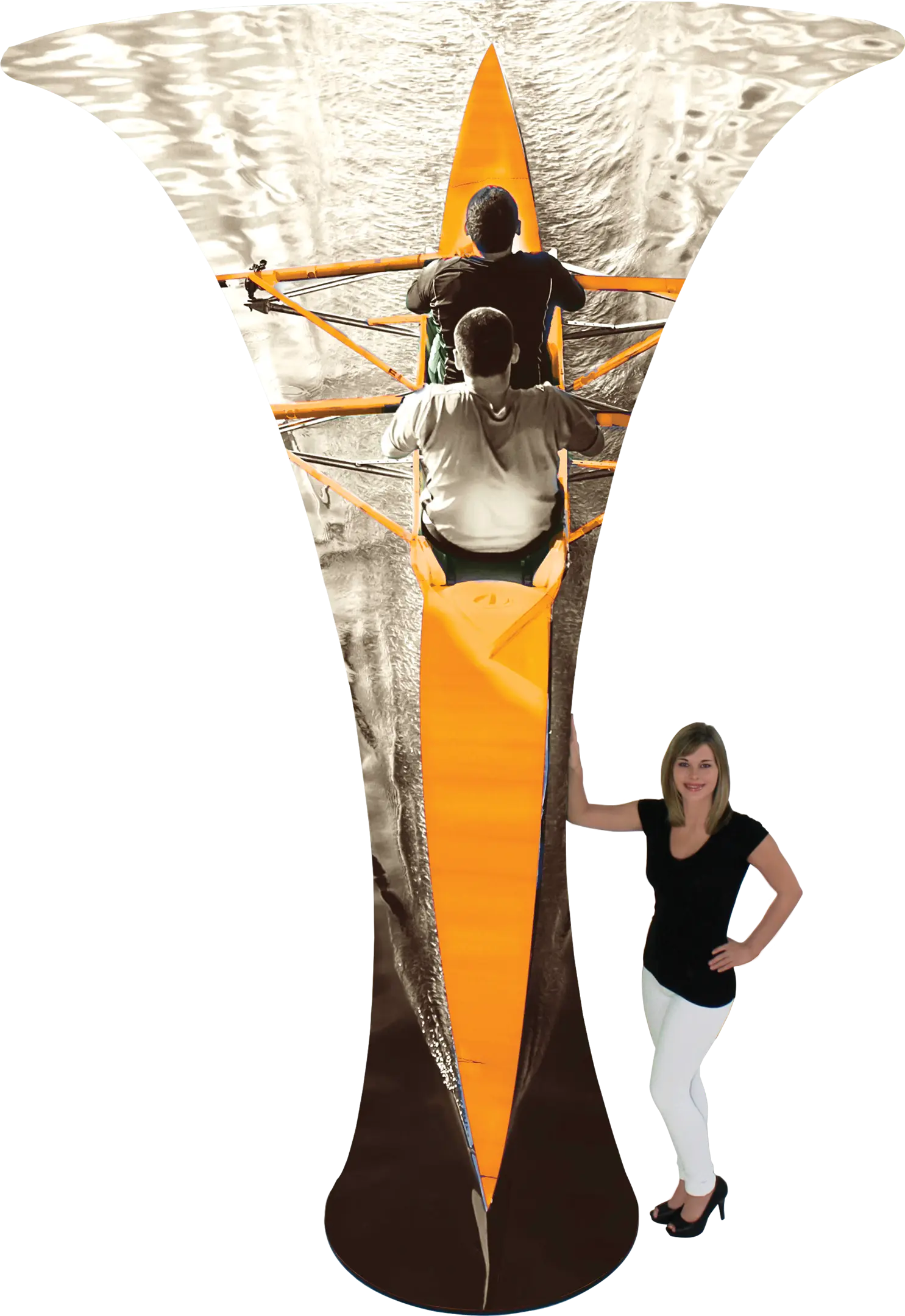

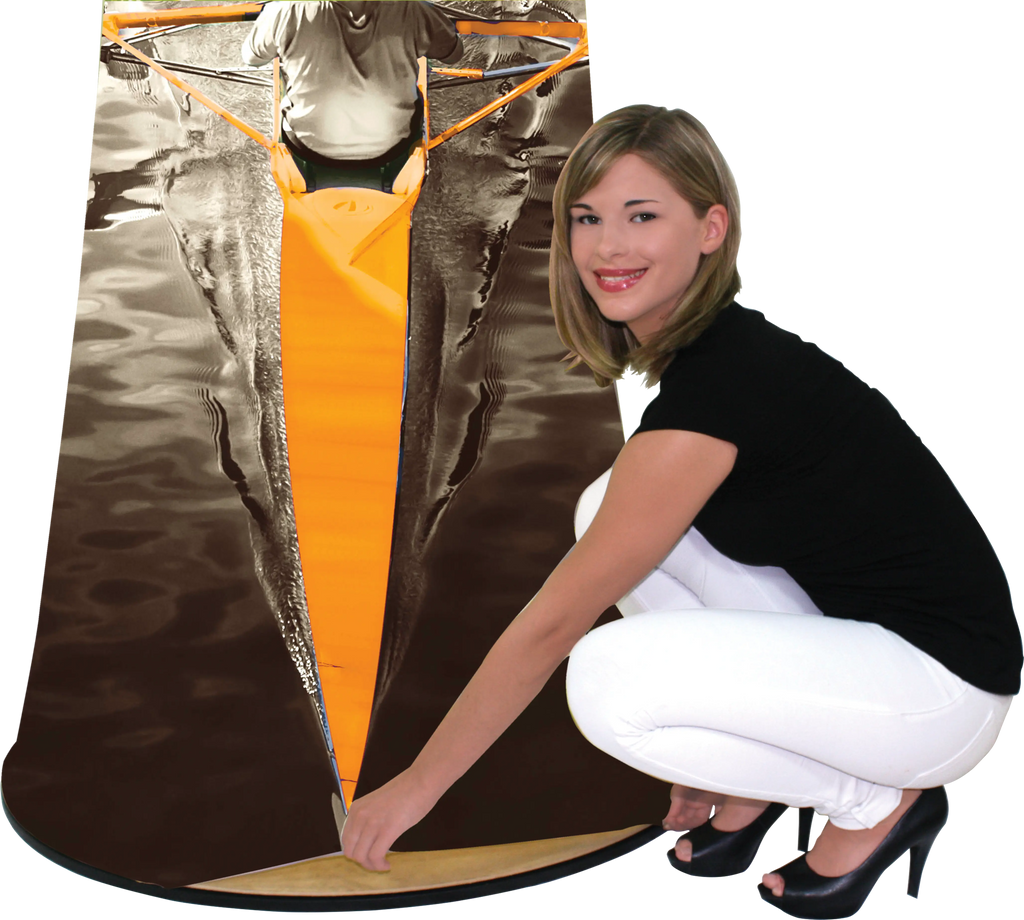

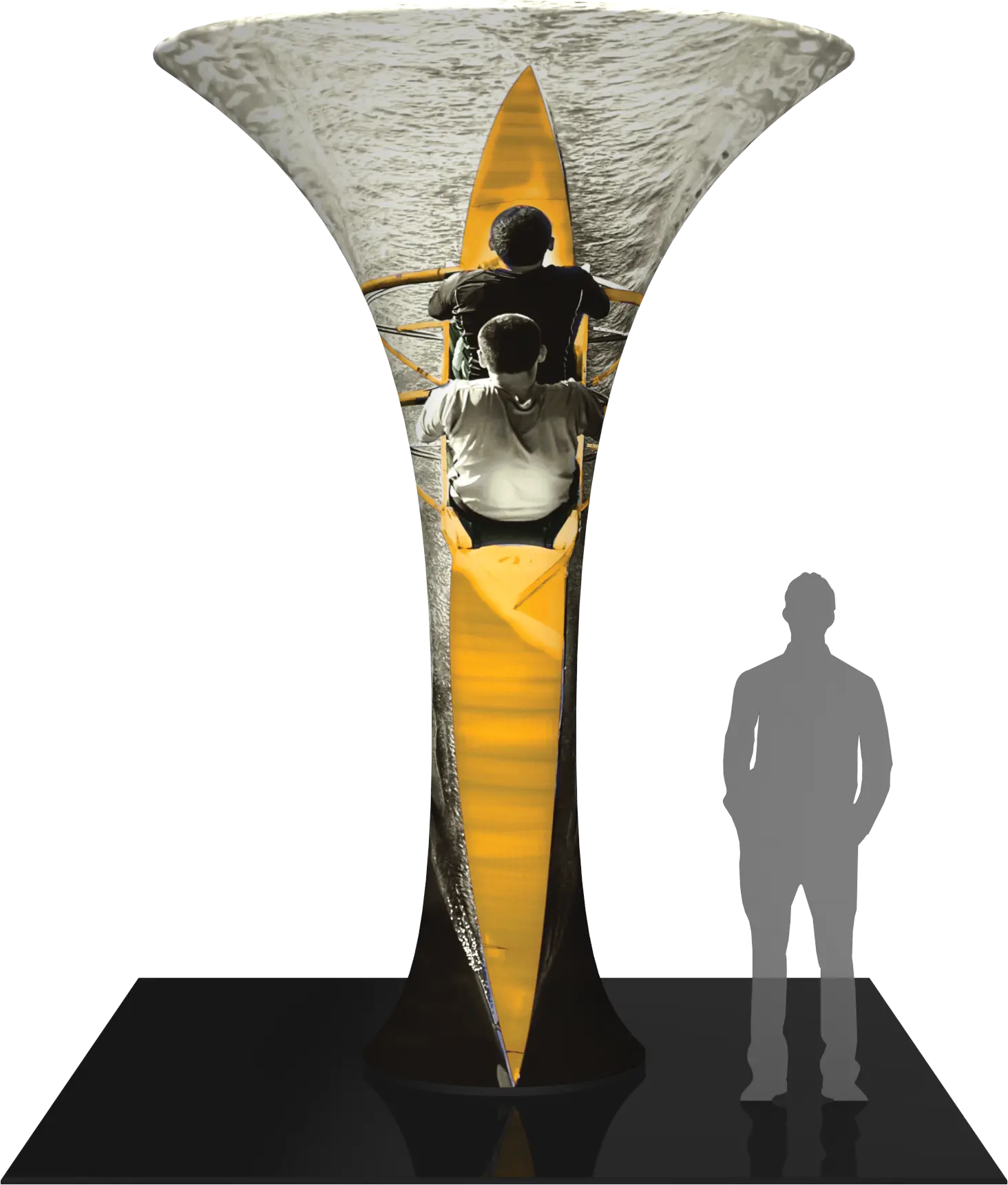

The 12ft Formulate® Fabric Funnel 03 can transform any environment through form, fabric and lighting. Formulate Funnel 03 measures 12ft tall, and features a heavy-duty wooden base and silver powder coated truss interior to create a dynamic, towering structure that commands attention. Fabric graphics feature a zipper at the top and a silicone edge at the bottom for easy assembly. Accent LED light kits are not included, but can be purchased a la carte to add a glow within the funnel. Funnel 03 packs down into two wheeled OCH2 cases for easy storage and transport.

State-of-the-art 30mm curved aluminum tube frame with expanding spigots
- Easy to store and ship
- Quick to set up
- Kit includes: one frame, one dye-sublimated zipper pillowcase graphic, and two wheeled molded OCH2 storage cases (base packs separately)
- 42" diameter at base

Graphic Width	94.67"
Graphic Height	155"
Assembled Dimensions	98.5"W x 140.97"H x 98.5"D
Hardware Only Weight	81.3 lbs
Graphics Only Weight	15 lbs
Approximate Total Display Weight	96.3 lbs
Shipping Dimensions	Ships in:2 x OCH2 (52"L x 29"H x 15"D)+ 1 SKID
Approximate Shipping Weight	126 lbs

Spec Sheets
IS_FUN-03.PDF
Graphic Templates
GT_FMLT-FUN-03.PDF
CAD Files
CAD_FUN-03.ZIP
